3HPM4-PYR2-STW
Prisma Tire HiPreMa 4 Pressure Gauge with Infrared Pyrometer and Stopwatch
- Free ground shipping on qualifying online retail orders $225+
High Precision Tire Pressure Gauge with Infrared sensor for tire temperatures and built in a Lap Timer
We have combined in one instrument
- Digital Tire Pressure Gauge HPM4
- Infrared Sensor for tire Temperature measurement
- Lap timer
Combining a highly accurate tire pressure gauge, infrared pyrometer and a multi-driver Lap timer, this all in one unit can help to provide all of your tyre data in once place and, thanks to its onboard memory, can store this data for multiple sessions. This means that you can review your data from previous sessions and compare how it has affected lap time.
Pressure gauge MODE
Tire pyrometer MODE
Measure and save COLD and HOT tire pressures in the PRESSURE mode

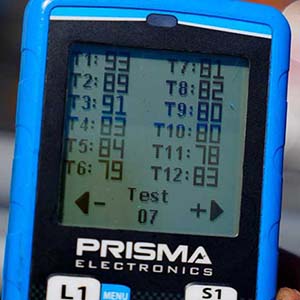

Measure and save AIR and TRACK temperatures and 12 points of tire temperature ( ex. EXTERNAL - INTERMEDIATE - INTERNAL ) for each sets

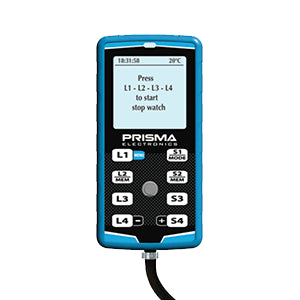

After measuring and saving pressures and temperatures, do you need a Stopwatch ?
Press and hold MODE button for 2 seconds and your instrument is a STOPWATCH !!
You can timing simultaneosly 4 drivers with 9 Split times for each drivers and Lap statistics
PRESSURE SHOT® function
By activating this function the pressure gauge HIPREMA 4 save automatically the HOT tire pressures without pressing any buttons.
PRESSURE gauge accuracy : 0.1%
- Maximum error at 5 BAR : +/- 0,005 BAR -- ( 0.072 PSI )
- Maximum error at 1 BAR : +/- 0,001 BAR -- ( 0.014 PSI )
CALIBRATION
- Tire pressure sensor does not require calibration. The internal microprocessor automatically performs the procedure in order to reach a reliable measure at 100%.
PRESSURE and TEMPERATURE units
- BAR and PSI for tire pressure gauge
- CELSIUS and FAHRENHEIT for temperature measurement
High ACCURACY infrared sensor
- 1°C temperature Accuracy
- 380°C Object Temperature
- 35°FOV - Field of view
MEMORY
- 25 Stopwatch sets of data
- 25 Tire pressures and Temperatures sets of data
SPLIT TIMES mode
- MODE A - Absolute Split times mode
- MODE I - Incremental Split Times mode
LANGUAGES menu
- Italian
- English
- Français
Setup of the favourite rotation for saving pressures
- Clockwise
- Counterclockwise
NEW FEATURES with Firmware version 4.0.0
By the Firmware 4.0.0. it is possible to set the saving sequence of tire pressures ; it is possible to set the sense of the rotation, Clockwise or AntiClockwise and also the tire from where to start the saving pressures sequence. Rear Right or Left tire - Front Right or Left tire.
